Build Kurts 1978 Honda Civic Trailer

Civic 1973-1979 Projects
Post Reply
User avatar
steve.ewing@ottawa.ca
Projects
Projects
Posts: 518
Joined: September 15th, 2009, 12:41 pm
Province/State: Ontario
Hometown: Kemptville
Model: 1976 Hatchback

Re: Honda Civic Trailer Build

Post by steve.ewing@ottawa.ca »

Looking good Kurt. Great progress.

DraVen
Newbie
Newbie
Posts: 2
Joined: March 25th, 2014, 1:03 am
Province/State:

Re: Honda Civic Trailer Build

Post by DraVen »

I could really use that core support...

User avatar
Kurt
LSD
LSD
Posts: 2054
Joined: August 3rd, 2005, 12:56 am
Province/State: British Columbia
Hometown: Maple Bay
Model: —————-

Re: Honda Civic Trailer Build

Post by Kurt »

What is the core support?

DraVen
Newbie
Newbie
Posts: 2
Joined: March 25th, 2014, 1:03 am
Province/State:

Re: Honda Civic Trailer Build

Post by DraVen »

The part of the front that holds the head light bucket and the radiator mounts to. It goes cross the front of the car. The hoods hinges mount on top of it. Don't really know how else to explain it.
Last edited by DraVen on April 15th, 2014, 12:37 am, edited 1 time in total.

User avatar
Kurt
LSD
LSD
Posts: 2054
Joined: August 3rd, 2005, 12:56 am
Province/State: British Columbia
Hometown: Maple Bay
Model: —————-

Re: Honda Civic Trailer Build

Post by Kurt »

sorry scrapped some time ago.

User avatar
Kurt
LSD
LSD
Posts: 2054
Joined: August 3rd, 2005, 12:56 am
Province/State: British Columbia
Hometown: Maple Bay
Model: —————-

Re: Honda Civic Trailer Build

Post by Kurt »

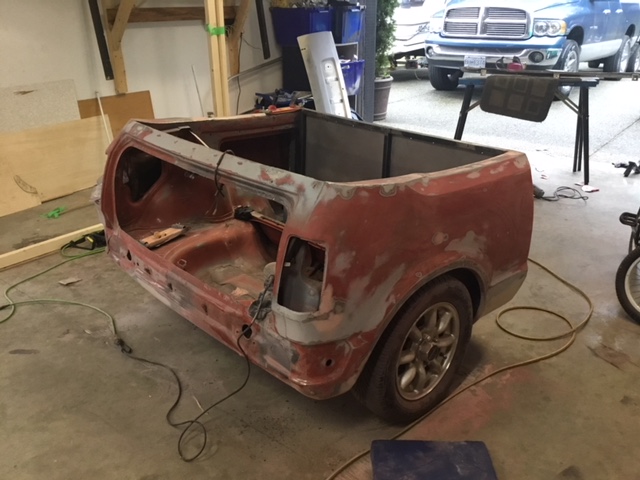

Did some more today and I finally ran out of sheet metal....gotta buy some to do the last bit before the frame gets welded up underneath.

Got the front cut "off" to make it flush. Once the frame is in place I will finish the front off with a large sheet across the front. I had to cut a portion of the lower sills/rockers out due to rust. The one gaping hole in the below photos is still there but at least I will have some solid metal to weld to when fixing the hole.

User avatar
DOHCIVIC
PanaSport
PanaSport
Posts: 229
Joined: September 11th, 2010, 9:57 pm
Province/State: North Carolina

Re: Honda Civic Trailer Build

Post by DOHCIVIC »

I better get a move on... you are catching up with mine...
1977 Honda Civic CVCC Hondamatic(sunday driver)
2005 Toyota Tachoma Quad cab(Daily)
2007 Honda Element SC(baby getter)

User avatar
Kurt
LSD
LSD
Posts: 2054
Joined: August 3rd, 2005, 12:56 am
Province/State: British Columbia
Hometown: Maple Bay
Model: —————-

Re: Honda Civic Trailer Build

Post by Kurt »

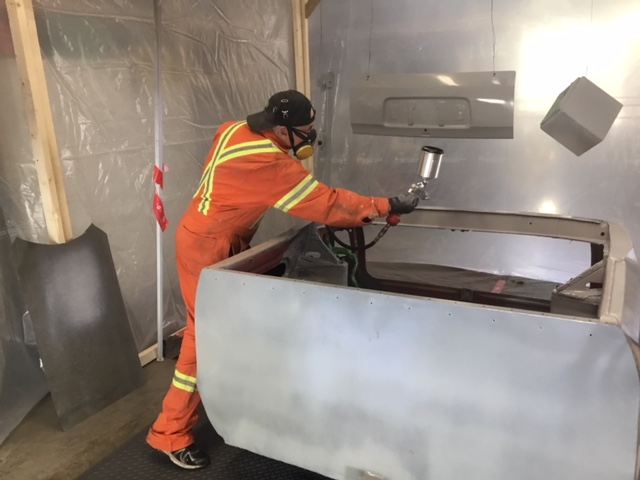

Ha ha! Well once the frame is underneath I may take a 'trailer break' until the fall after we move. The body work will be the fall project and then spray it next spring.

User avatar
O D I N
Newbie
Newbie
Posts: 2
Joined: April 23rd, 2014, 2:32 am
Province/State:

Re: Honda Civic Trailer Build

Post by O D I N »

Looks like you are having fun with this. Have you figured out how you are going to make a trailer hitch on your 1200?

User avatar
Kurt
LSD
LSD
Posts: 2054
Joined: August 3rd, 2005, 12:56 am
Province/State: British Columbia
Hometown: Maple Bay
Model: —————-

Re: Honda Civic Trailer Build

Post by Kurt »

O D I N wrote:Looks like you are having fun with this. Have you figured out how you are going to make a trailer hitch on your 1200?

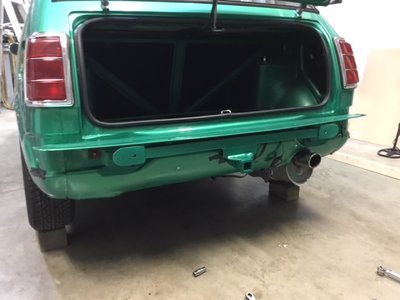

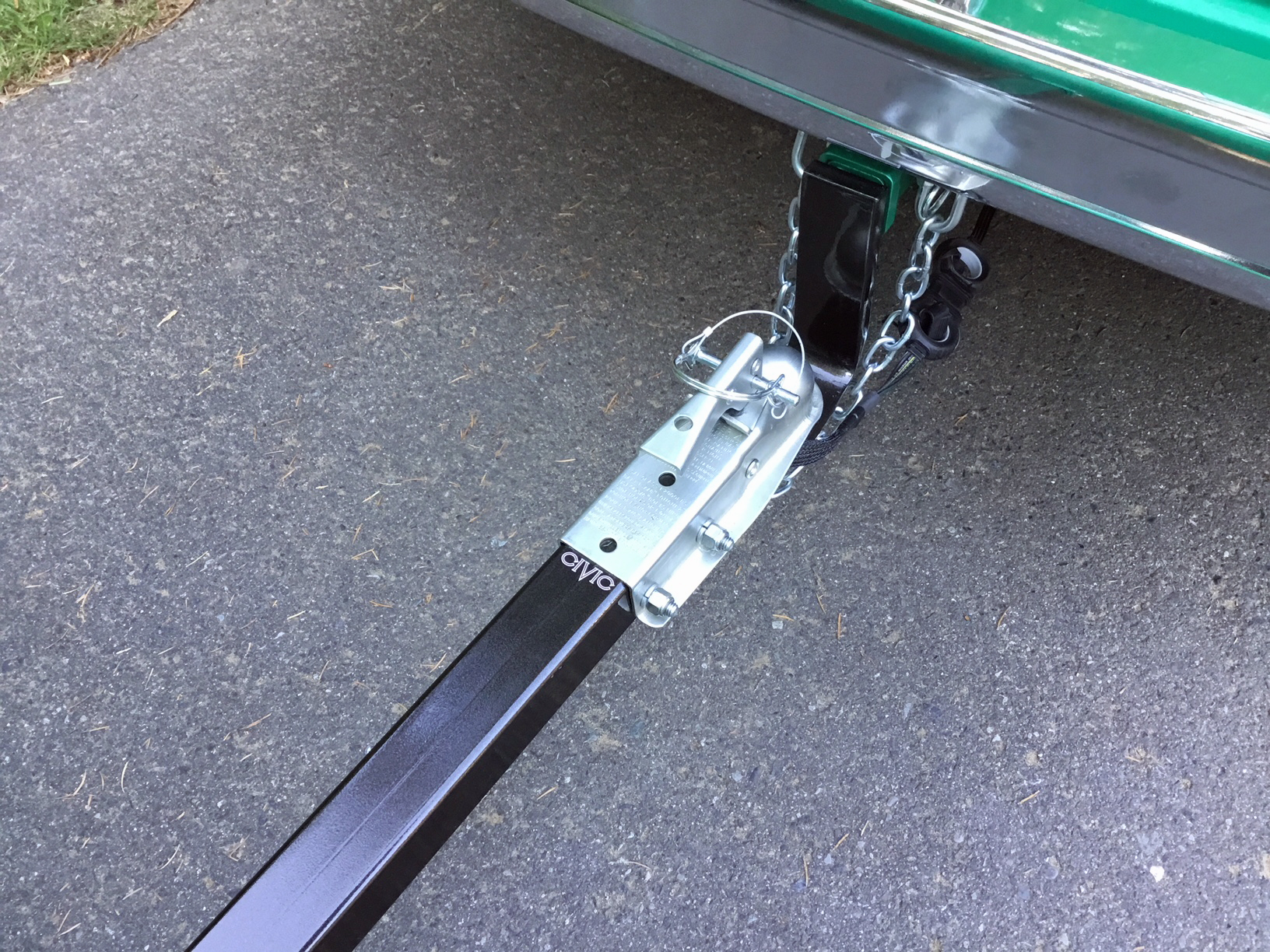

Kinda. My car is a '78 despite the earlier bumpers so I have retained the bumper shocks the 78-79 cars used. At this point, I have them removed but, there are 'tow hooks' attached to each of the bumper shock mounts (see pic below).

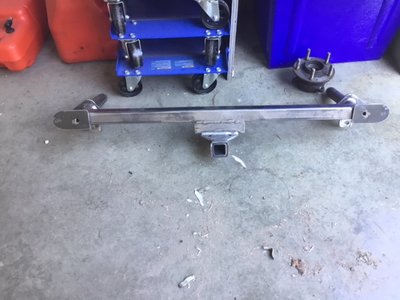

My thought was to weld a beam across these tow hooks and weld in the small small receiver to that (like the 'Curt' brand Toyoto Corolla one below). BUT, for extra support (and peace of mind) I was thinking of then welding in another support beam that curls underneath the car and bolts onto a plate I would weld or bolt to the part where the tow hook is behind the spare tire well.

I want the entire receiver assembly to be removable which I could do by removing those bolt one tow hooks and from the plate underneath the car as I don't want to stare at the hitch assembly when I only plan on towing the trailer once or twice in a season. My main concern is making it all safe so I am using previous set ups like Twylas (Justins), Vic's and Will's to see what has worked....they have towed their trailers a lot and I can attest Twyla's has been loaded up good and heavy on our annual 1000 km round trip.

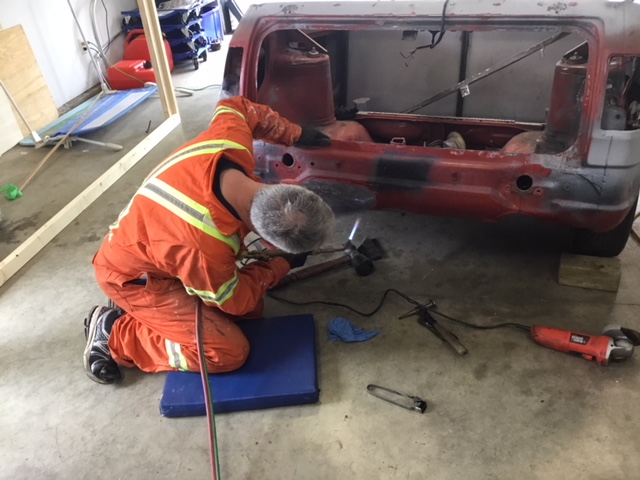

I am new to welding (as you can see in the pics!) so I am having Jay (a previous first gen owner) who is a welder by trade design, fabricate and weld up the trailer frame and hitch.....I kinda want it to stay attached to the car :mrgreen:
bumper mounts.jpg
bumper mounts.jpg (129.31 KiB) Viewed 3963 times
possible receiver.JPG
possible receiver.JPG (34.75 KiB) Viewed 3963 times
